SD SERIES
The Super Duty (SD) L-Star Series is a very large format CO2 laser system with a range of high power laser options for demanding industrial-grade cutting applications.
The SD series was built for large format, high throughput industrial cutting applications in manufacturing settings.
High-Precision Servo Drives
The L-Star line uses an advanced, all brushless servo motor drives that are directly connected to the main motion board for faster servo update rates and seamless motion at high speeds.
Remote Pendant
The remote pendant allows for full machine control anywhere around the laser. It provides full color graphics display and easy access to all your job files.
Precision Motion
The LS utilizes the straight tooth rack and pinion drive system for quick and accurate engraving capabilities.
Sealed Metal Tube Laser
The L-Star is available with lasers from 35 watts to 300 watts (model dependent).
Solid Steel Construction
The all-welded steel construction of the L-Star is stress relieved and precision machined to make the L-Star a robust and accurate system.
Standard Table Configuration
The L-Star includes an updraft dust manifold and removable engraving deck to allow for larger material such as monuments.
LST510SD / LST512SD
The LST510SD is a heavy-duty system that can be extended to 12 feet with the optional "Extended Length"
- Work Area 62″ x 122″ (1560 mm x 3070 mm)
- Available Laser Wattage 450, 1100

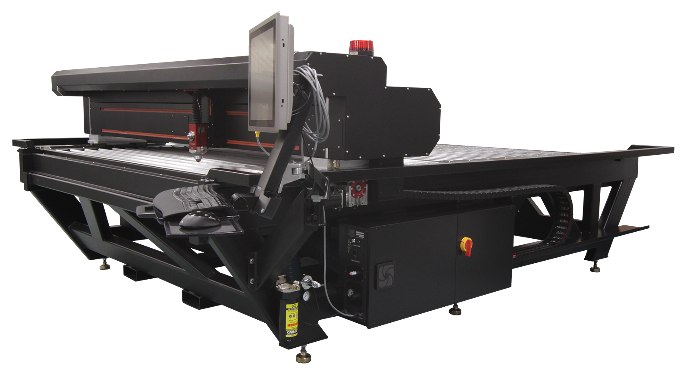

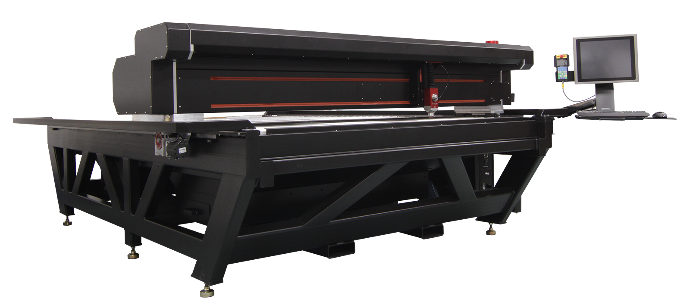

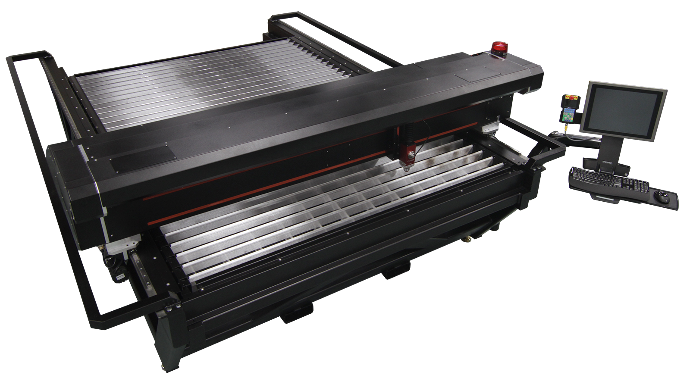

LST710SD
The LST710SD is
- Work Area: 100″ x 122″ (2438 mm x 3098 mm)
- Available Laser Wattage 450, 1100
LST810SD
The LS4896 is designed for higher volume. It is available with roller tables for easy loading and/or unloading thick, heavy or cumbersome objects into the work area.
- Work Area 100″ x 122″ (2438 mm x 3098 mm)
- Available Laser Wattage 450, 1100
LST1014SD
The LS610 has configurations and options that include custom table options, dual gantries and lasers, as well as material unwind and rewind, to meet the most demanding applications.
- Work Area 122″ x 160″ (3025 mm x 4025 mm)
- Available Laser Wattage 450, 1100
Table Options
Removable Engraving Deck Option
- Allows for Tile and Marker engraving
- Supports up to 250Lbs
- Easy to remove
Roller Track
- For roll in and roll out or roll through memorial support
- Length of the roller track depends on the machine size
- Insert versus removable track available
Hand Crank Four Post Lift Table
- 2000 lbs. lift capacity
- Maximum stone height 12"
- Roll around cart
Hydraulic Lift Table (available on LS610 only)
- 2000 lbs. lift capacity
- Integrated 10′ roller track
- Foot pedal actuated
Glass Engraving Table (available on LS610 only)
- Adjustable vacuum cup leveling fixture maintains a flat surface for high resolution engraving.
Other Options
Extended Height Frame (available on LS610 only)
- Extends frame height for additional clearance under the gantry
- Adds capability to insert thicker stones and casket lids
Fume Extraction Options
Options available for fume extraction include fume pumps, diaphragm air pumps, and full width updraft manifolds.
Optics Options
- 1.5” Focal Length Lens and holder for high resolution engraving
- 4.0” Focal Length Lens and holder for general engraving with surfaces that vary in height
Urn Engraving Option (only on the LS610)
- Includes a 5” 3 jaw chuck
- Tailstock with center
- Maximum urn or part length 16″
