LS3648
Ideal Monument Engraving System
The LS3648 is the Monument Industry standard for laser engraving systems.
With a host of available options, it offers rapid payback and unsurpassed durability.
The LS series is the MOST AFFORDABLE HIGH PERFORMANCE LASER ETCHING SYSTEM.
The LS3648 is based on an XY gantry style positioning system. It utilizes dual brushless servo drives in the X axis (long axis) using high precision rack and pinion mechanism on each side. The Y axis uses a single brushless servo motor system driving a high precision belt system. The Y axis positioning system is the result of 2 years of effort to bring the most accurate and fastest system for image engraving on the market the market. In fact we believe the Vytek L-Star is the fastest engraving system in the world.
FEATURES
Standard Table Configuration
The L-Star includes an updraft dust manifold and removable engraving deck to allow for larger material such as monuments.
High-Precision Servo Drives
The L-Star line uses an advanced, all brushless servo motor drives that are directly connected to the main motion board for faster servo update rates and seamless motion at high speeds.
Precision Motion
The LS utilizes the straight tooth rack and pinion drive system for quick and accurate engraving capabilities.
Remote Pendant
The remote pendant allows for full machine control anywhere around the laser. It provides full color graphics display and easy access to all your job files.
Sealed Metal Tube Laser
The L-Star is available with lasers from 35 watts to 300 watts (model dependent).
Solid Steel Construction
The all-welded steel construction of the L-Star is stress relieved and precision machined to make the L-Star a robust and accurate system.
MACHINE SPECIFICATIONS*
OUTSIDE DIMENSIONS
81" x 50" x 48" (W x D x H)
ELECTRICAL REQUIREMENTS
100-240 VAC 50/60Hz
WORK AREA
36″ x 48″ (900 mm x 1220 mm)
WEIGHT
Approximately 1,500 lbs.
AIR
- Use clean (filtered preferred) shop air.
- Tubing O.D.: 1/4"
POWER CONSUMPTION W/O LASER*
≤450W
* Specifications are subject to change without notice.
MACHINE OPTIONS
Table Options
Removable Engraving Deck Option
- Allows for Tile and Marker engraving
- Supports up to 250Lbs
- Easy to remove
Roller Track
- For roll in and roll out or roll through memorial support
- Length of the roller track depends on the machine size
- Insert versus removable track available

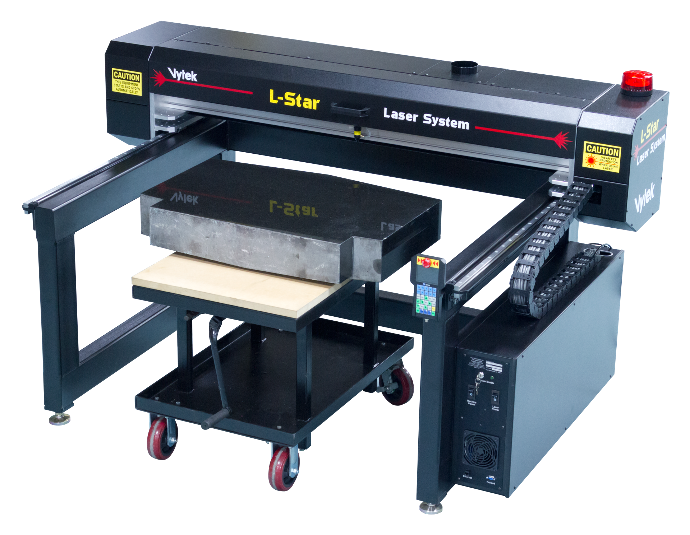

Hand Crank Four Post Lift Table
- 2000 lbs. lift capacity
- Maximum stone height 12"
- Roll around cart
Other Options
Fume Extraction Options
- Fume Pumps
- Diaphragm Air Pumps
- Full Width Updraft Manifolds
Optics Options
- 1.5” Focal Length Lens and holder for high resolution engraving
- 4.0” Focal Length Lens and holder for general engraving with surfaces that vary in height
Laser Wattage Options
- 35- or 90-Watt Air Cooled CO2 Laser
- 120- or 170-Watt Water Cooled CO2 Laser
