COMPACT XYZ
Multi-Axis Fiber Laser System

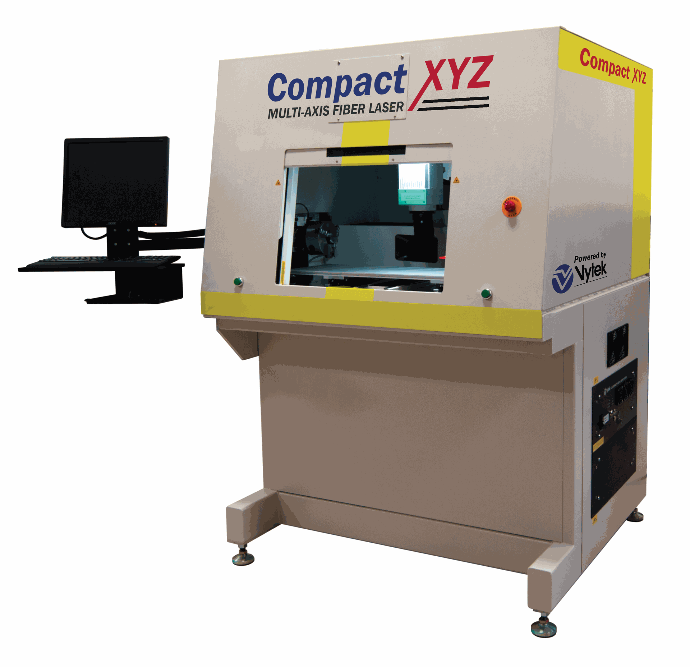

The Compact XYZ™ combines the capabilities of a fixed head laser system with the benefits of a moving head assembly. The XYZ is ideal for batch processing and step-and-repeat marking while maintaining a small spot size to maximize throughput. The XYZ can also process oversized parts that require either marking (or deep engraving) over a large area or discreet marking in locations separated by a distance greater than the marking field.
The XYZ provides the accuracy and the flexibility needed to handle tall or long parts. It can also be setup for welding, light cutting, vision options, automated loading and unloading, and even rotary options for round part marking.
FEATURES
Beam Delivery
With the Compact series the laser beam is delivered to the work surface by means of a high accuracy galvo with a working field size defined by the user’s choice of optics. The optional 3-axis galvo extends the field size to 300mm as well as offering 3D engraving features.
Base Structure
With the Compact series the laser beam is delivered to the work surface by means of a high accuracy galvo with a working field size defined by the user’s choice of optics. The optional 3-axis galvo extends the field size to 300mm as well as offering 3D engraving features.
Standard Table Configuration
The table is an aluminum T-Slot extrusion support ready to accept a customer supplied fixture assembly.
Base Structure
The base system is a steel structure designed specifically to reduce the effects of the surrounding vibrations while offering a thermally stable support structure. The Galvo assembly is mounted on a high precision Z stage which itself is mounted to a precision surface.
Automatic Door
The system utilizes air pressure from the air pump to close the door pneumatically.
MACHINE SPECIFICATIONS*
LASER TYPE (Wavelength)
- Fiber 1500, or 3000 Watt QCW Pulsed Ytterbium based laser source (1064nm)
- MOPA Fiber lasers from 60 to 350 watts
MULTIMODE FIBER CORE
50um, 100um or 200um
OUTSIDE DIMENSIONS
WEIGHT
WORKING FIELD
12″x25″
Maximum Part Height mm (in)
W/ a F-160
15″ of Z Stroke
COOLING
Water cooled.
POWER CONSUMPTION W/O LASER*
≤450W
ELECTRICAL REQUIREMENTS
100-240 VAC 50/60Hz
PC CONNECTION
Ethernet or USB (depending on the configuration)
AIMING BEAM
(2) Class 2M Red Diode 635 nm
AIR ASSIST
(Use of clean, filtered shop air for the air pump which will help keep the work area clean.
*Specifications are subject to change without notice.
MACHINE OPTIONS
Focus Lens Options
F-100
- Field size mm(in): 70x70 (2.75” x 2.75”)
- Working focal length mm(in): 97 (3.82”)
F-160
- Field size mm(in): 110x110 (4.33” x 4.33”)
- Working focal length mm(in): 176 (6.93”)
F-254
- Field size mm(in): 175x175 (6.89” x 6.89”)
- Working focal length mm(in): 296 (11.65”)
F-330 (not available on Compact)
- Field size mm(in): 205x205 (8.06” x 8.06”)
- Working focal length mm(in): 385 (15.16”)
F-420 (not available on Compact)
- Field size mm(in): 300x300 (11.82” x 11.82”)
- Working focal length mm(in): 495 (19.50”)
Fume Extraction Options
3 Stage Filtration System
Exchanges inside air from .3 to 1 micron.
Dust & Fume Extraction Unit
Exchange inside air using pre-filters and a HEPA filtration unit.
Rotary Options
3-Jaw Rotary Chuck
Heavy Duty or Medium Duty options available.
Rotary Collet
Our 5C collet rotary option allows fast change over for both small and long parts, as well as parts requiring a through hole. It uses industry standard collets and has up to 25-pound capacity. The unit can either be operated automatically through software control or with and optional foot pedal-actuator.
Rotary Dial
Adjustable vacuum cup leveling fixture maintains a flat surface for high resolution engraving.
Table Options
Magnetic Fixture
Consider a magnetic fixture table when part swapping speed is critical. The magnetic fixture table is a combination of a docking rail and interlocking fixture plates that quickly secure and release with the use of magnets. Kit includes an assortment of fixtures.
XY Table
The XY table allows for multiple part marking with a highly accurate, programmable XY motion. It maintains Class 1 system status while increasing throughput
Rotary Index Table
The precision-machined rotary index table has two stations and can be set up for one continuous job or two different jobs. It helps eliminate wasted time spent on material handling and increases throughput. It is touch sensor-controlled for ease of operation.
Other Options
Programmable Z
- Extends frame height for additional clearance under the gantry
- Adds capability to insert thicker stones and casket lids
Pass-Through
When parts occasionally exceed the cabinet size, choose our Class IV Pass-through option.
Camera Option
When parts occasionally exceed the cabinet size, choose our Class IV Pass-through option.
Dual Diode Focus
Dual Diode Focus
When parts occasionally exceed the cabinet size, choose our Class IV Pass-through option.
