FCL32
Laser Cutting System

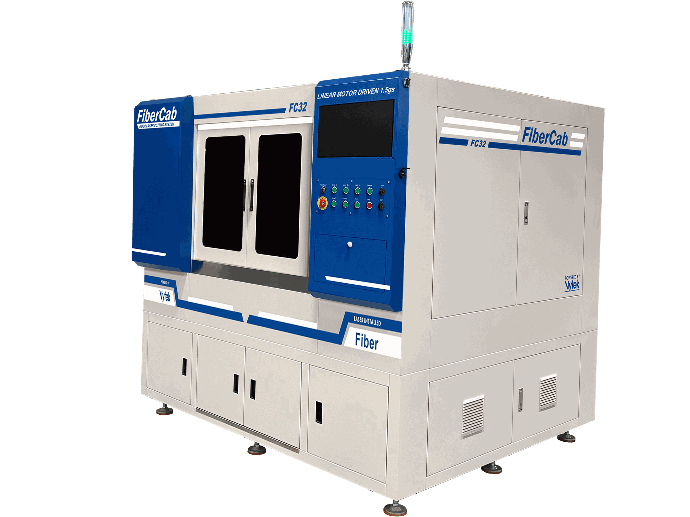

The FiberCab Mini Series from Vytek is built upon 25+ years of experience building production laser and CNC equipment. A multi-year focused effort went into the design and building of an ultra-high accuracy high speed laser cutting platform specifically for small to micro part processing. Our efforts have resulted in the Mini-series a true advancement in a laser cutting platform design.
The Mini Plus FC32 was designed and optimized for both ferrous and non-ferrous metals with the ability to process materials as thin as .0002”/.005mm and the ability to resolve part geometries to as small as .0005”/.012mm.
FEATURE
Pneumatic Clamps
Our Modular Adjustable Table design, unique in the industry, incorporates a pneumatic hold down clamping system and eliminates the need for the support slats while securely holding the smallest materials in place. The table system is fully adjustable for material widths as small as 2”/50mm and eliminates contact on the back side of the material and the damage caused by supports. This revolutionary approach to material support also allows for multiple work zones with the addition of up to 3 pairs of clamp sets.
Control Interface
The FCL series is built around a rugged integrated machine interface which features a full graphic display and allows total machine and program control right at the machine console. The operator has full control of all critical job-related parameters, allowing on the fly job edits while monitoring machine performance. Complete job statistics as well as remote support from Vytek are all standard.
Drop Through Table
The FCL series table system also features a drop through well design that also doubles as the fume/dust extraction plenum. Access to material drops is easy with a convenient front door access and a fully removable drawer for easy unloading.
Laser Source
The FCL series can be equipped with a variety of laser sources in both single and multi-mode configurations in both air and water-cooled formats. The FCL32 platform is available with up to 3kW in CW laser sources. Focused spot sizes can range from as small as 10um (with single-mode fibers) and as large as 200um. We also offer specialty laser sources in other wavelengths including Pico and Femto second in custom configurations.
Cutting Head
The Cutting Head and its optical configuration are an important part of the laser system, so we carefully match the cutting head configuration to the applications to ensure peak performance. We offer a wide variety of configurations to best match the laser choice and spot size requirements and offer head options in both manual and auto focusing, to meet any production requirement.
Linear Motors
The linear motor drives are iron-free to keep it running smooth and steady for years to come and the user interface offers many control options to help bring your project to life.
- Non-Contact capacitance height following
- Full machine enclosure
- Integrated Industrial grade computer
- Programable automatic gas assist
MACHINE SPECIFICATIONS*
LASER TYPE (Wavelength)
Fiber 20, 30, or 50 Watt Pulsed Fiber (1.070nm)
WEIGHT
approx. 6,000 lbs
POWER CONSUMPTION W/O LASER*
≤450W
OUTSIDE DIMENSIONS, mm (in), LxWxH
1803 x 2083 x 1905 (71″ x 82″ x 75″)
MAX PART SIZE mm (in) W x L
810mm x 810mm (32"x32")
Maximum Part Height mm (in)
W/ a F-160
100 (4″)
FCL SYSTEMS IN ACTION
Table Options
Large Sheet Rear Pass-in-Option
- Allow Oversize Sheet to be passed from rear
- Brush guarding to prevent laser emissions
- Roller guides for alignment of material
- Front flip down door with safety interlock
Dust Extraction Options
3kW 2 filter Self Contained Dust Extraction Unit (Recommended)
- Exchanges inside air using 2 filter cannisters
- Requires Filter Replacement based on Frequency of Use
- Operates at 400v 3ph and requires compressed air
- NOTE: For Medium Duty use up to 6 hours/day of cutting
UPGRADE 5.5kW 4 Filter Self Contained Dust Extraction Unit
- Exchanges inside air using 4 filter cannisters
- Requires Filter Replacement based on Frequency of Use
- Operates at 400v 3ph and requires compressed air
- NOTE: For Heavy Duty use for 8+ hours/day + of cutting
Other Options
Gas Regulator for Medium Pressure Oxygen
- Medium pressure gas regulator for use with gas or liquid assist gas
Gas Regulator for High Pressure Nitrogen
- High pressure gas regulator for use with gas or liquid assist gas
Step Up Transformer: 220v to 400v for 3kW to 6kW Lasers
- Fiber laser sources require the operating voltage to be 400 volts
Step Down Transformer: 480v to 400v for 3kW to 6kW Lasers
- Fiber laser sources require the operating voltage to be 400 volts
I-Laser Vision PLUS Alignment System
- For alignment of printed metal sheet with registration marks
- Head mounted high resolution camera with lighting
