Compact Tower
The Compact Tower is a free-standing system that can be equipped with a Rotary indexer for circumferential marking or a rotary dial table for higher throughput of direct part marking. The rotary index table maximizes laser operational time by allowing the operator to safely load and unload parts while the laser system is marking on another station of the index table.
| Laser Type |
CO2 Sealed metal tube lasers from 35 W to 250W other laser power options available upon request |
| Air requirements |
None with standard configuration |
| Outside dimensions, mm (in), HxWxL |
1720x615x615 (64″x24″x24″) |
| Power consumption w/o laser* |
≤450W |
| Electrical requirements |
100-240 VAC
50/60Hz |
| Max material size mm (in) |
500×500 (21.02×20.79) |
| Available Marking Fields (in) |
2.32×2.32, 4.33×4.33, 6.89×6.89, 9.06×9.06, 11.42×11.42 |

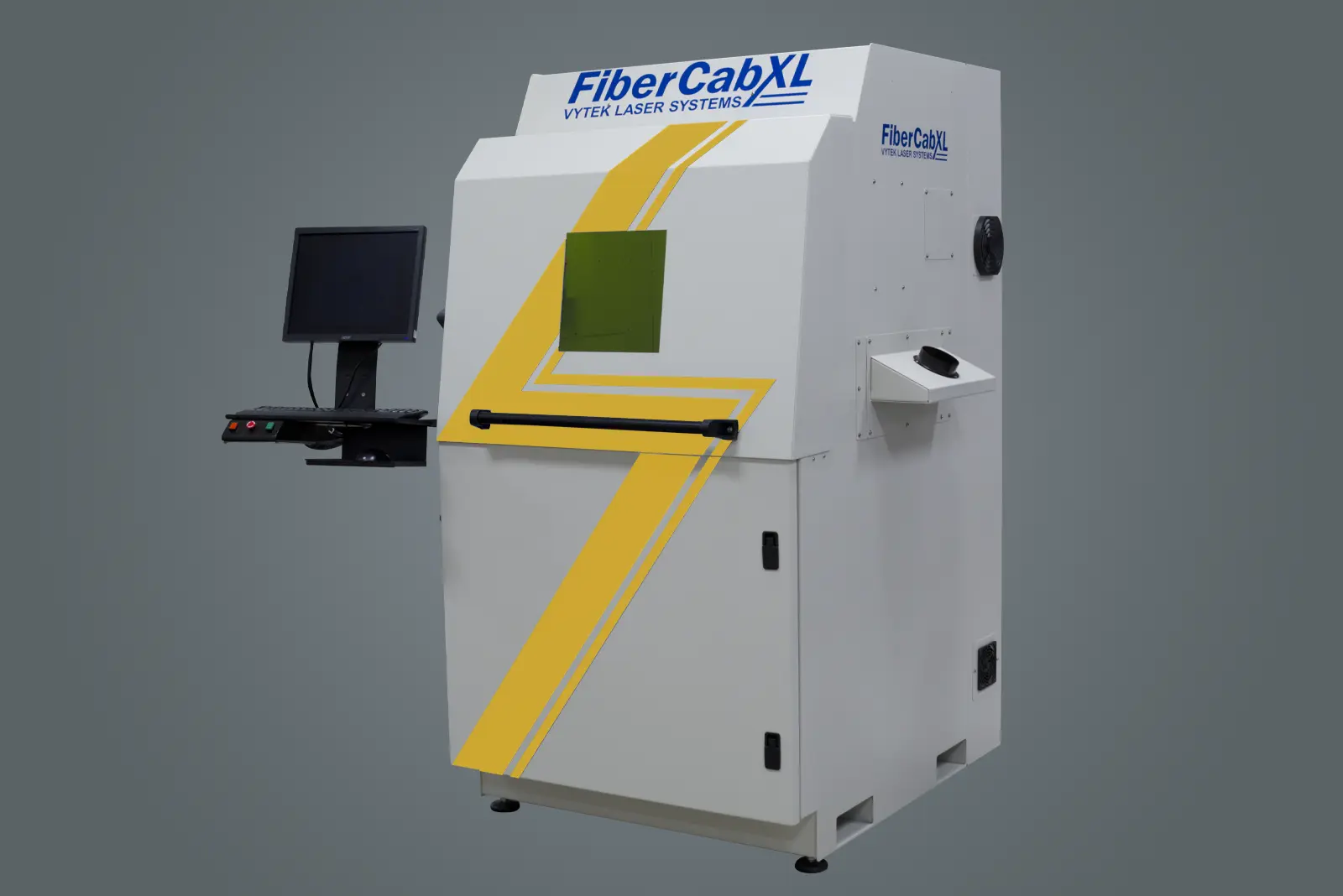

Compact XL
The Compact XL is a jumbo-size laser station capable of marking a part size up to 3′ x 3′. This machine includes an adjustable table deck that allows oversized parts to be fully inserted into the cabinet while maintaining a Class 1 rating.
| Laser Type (Wavelength) |
Fiber 20, 30, 50, 100 or 200 Watt Pulsed Fiber (1.064nm)
Fiber Green 10 watt (532nm)
CO2 to 400 Watts |
| Electrical Requirements |
100-240 VAC 50/60Hz |
| Power Consumption w/o Laser* |
≤450W |
| Outside Dimensions mm (in) H x W x L |
1575 x 102 x 102 (62″ x 40″ x 40″) |

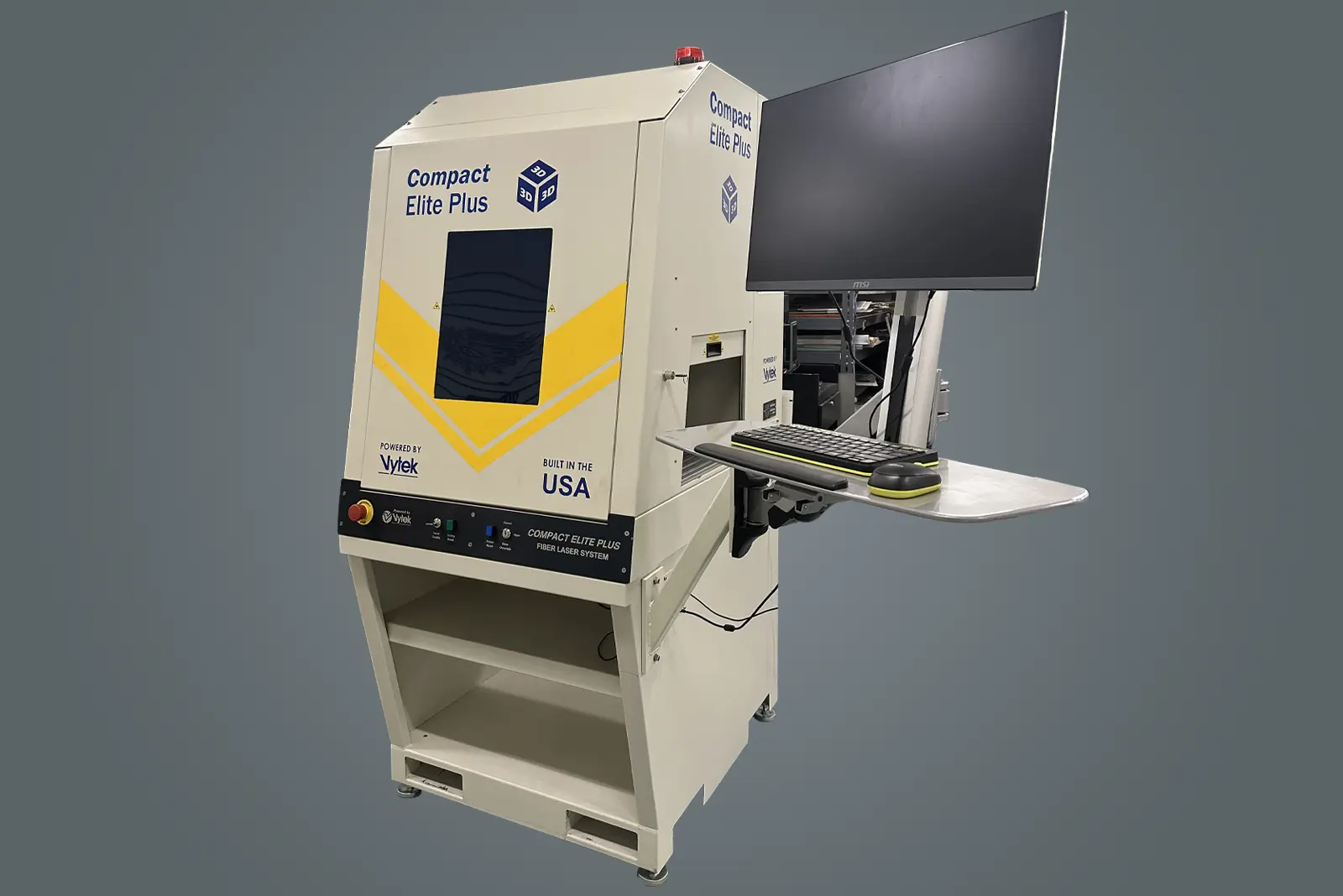

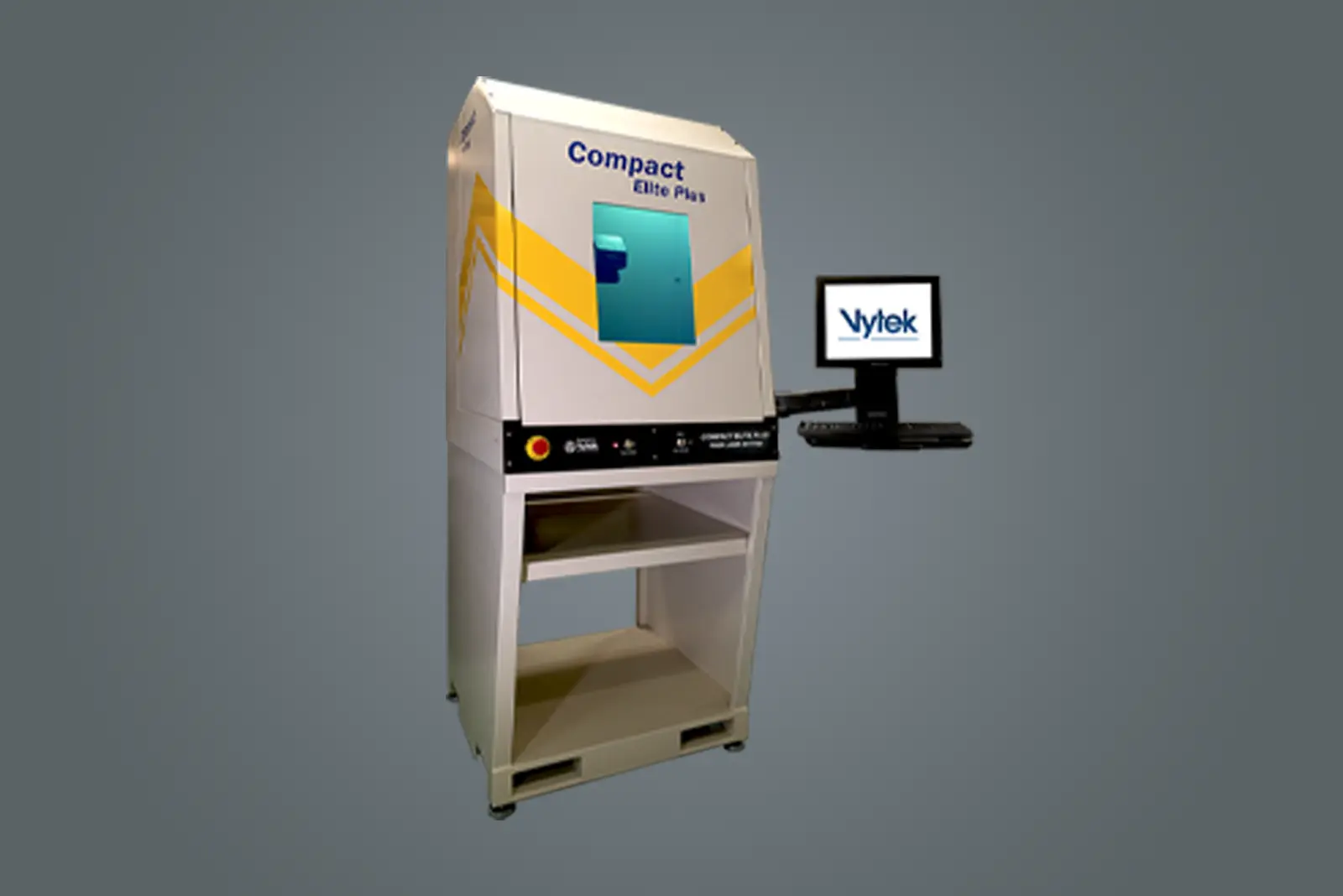

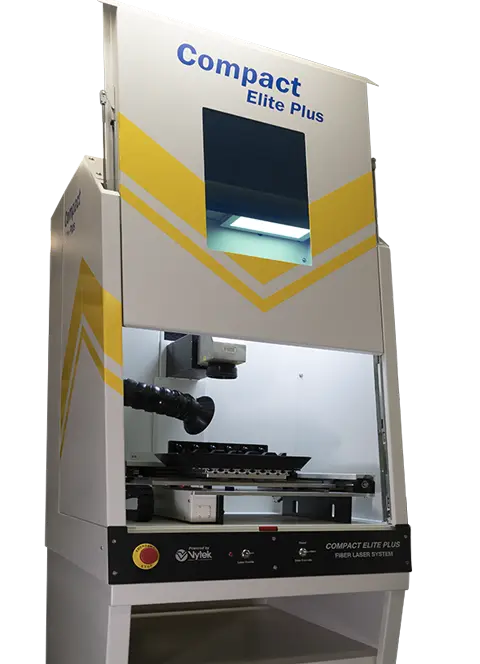

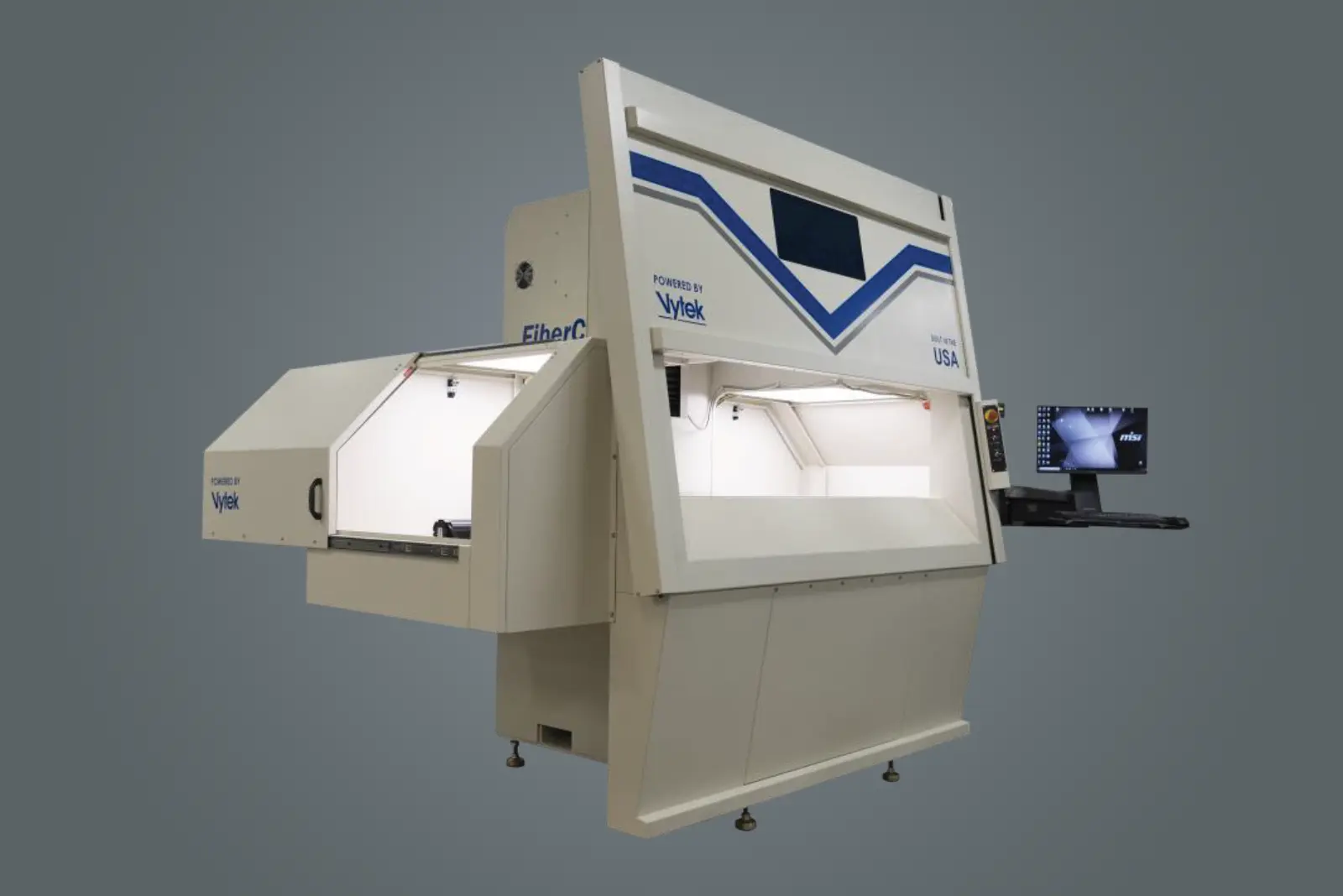

Elite Plus

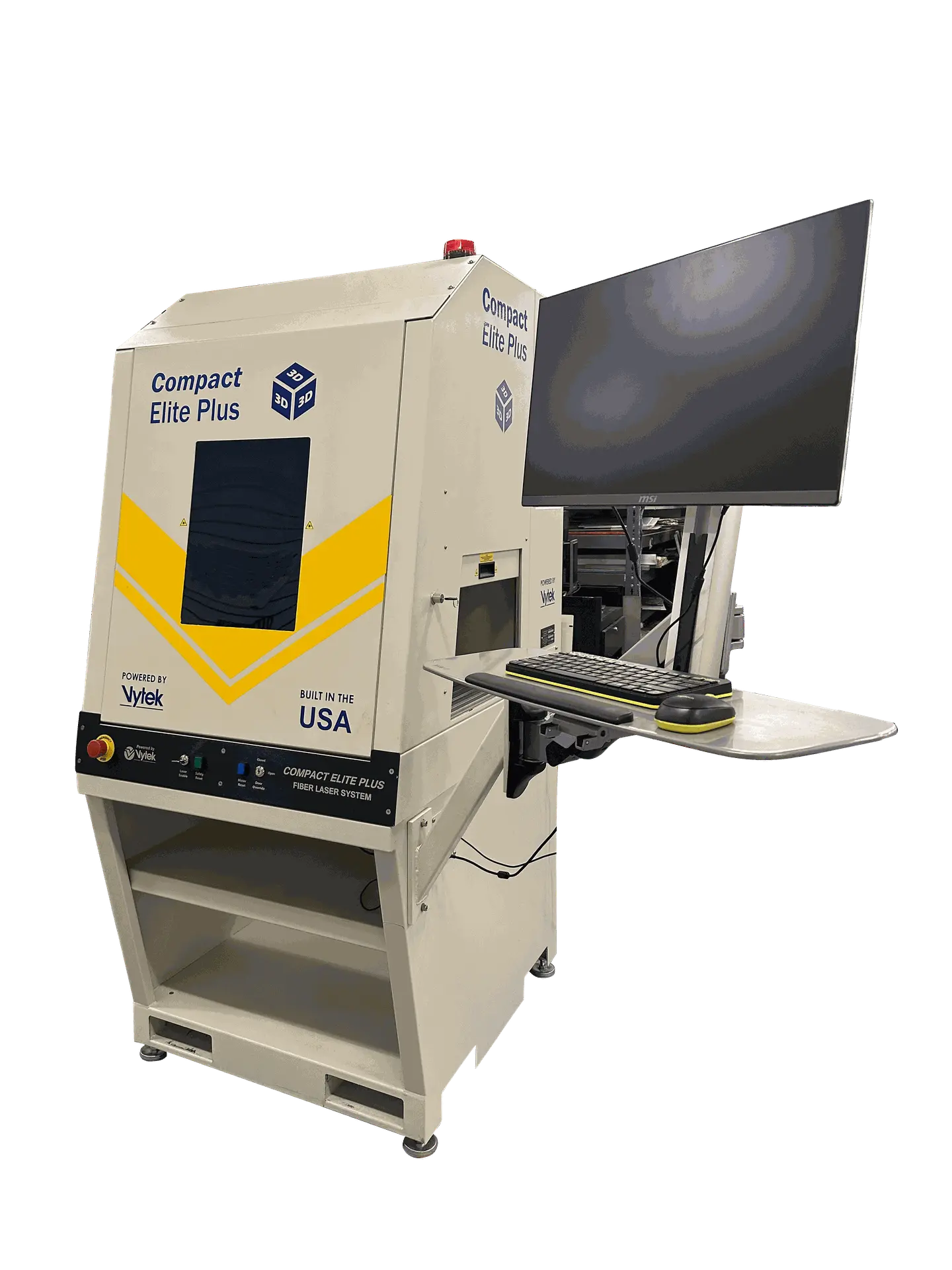

Offering twice the work area of the standard Compact, the Elite Plus is designed to meet larger part marking needs while maintaining the smallest possible footprint.
| Laser Type (Wavelength) |
Fiber 30, 50, or 100 Watt Pulsed Fiber (1.070nm)
Fiber MOPA 20, 50, 70, 100, 200 Watt Pulsed |
| Electrical Requirements |
100-240 VAC 50/60Hz |
| Power Consumption w/o Laser* |
450W |
| Air Requirements |
None with standard configuration |
| Max Part Size mm W x L |
175mm x 175mm |
| Maximum Part Height mm (in)
W/ a F-160 |
152 (6″) |

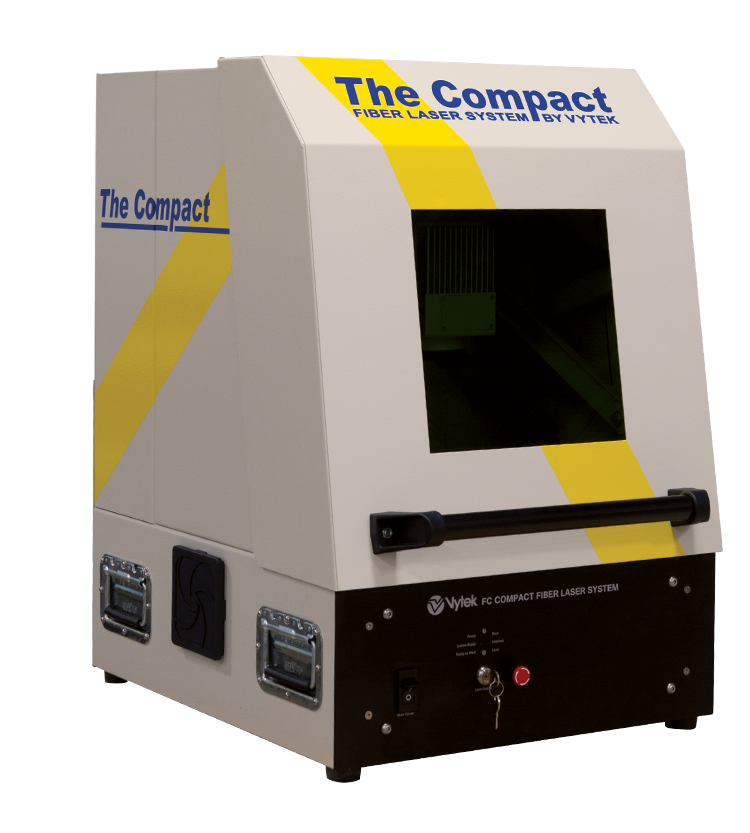

Compact

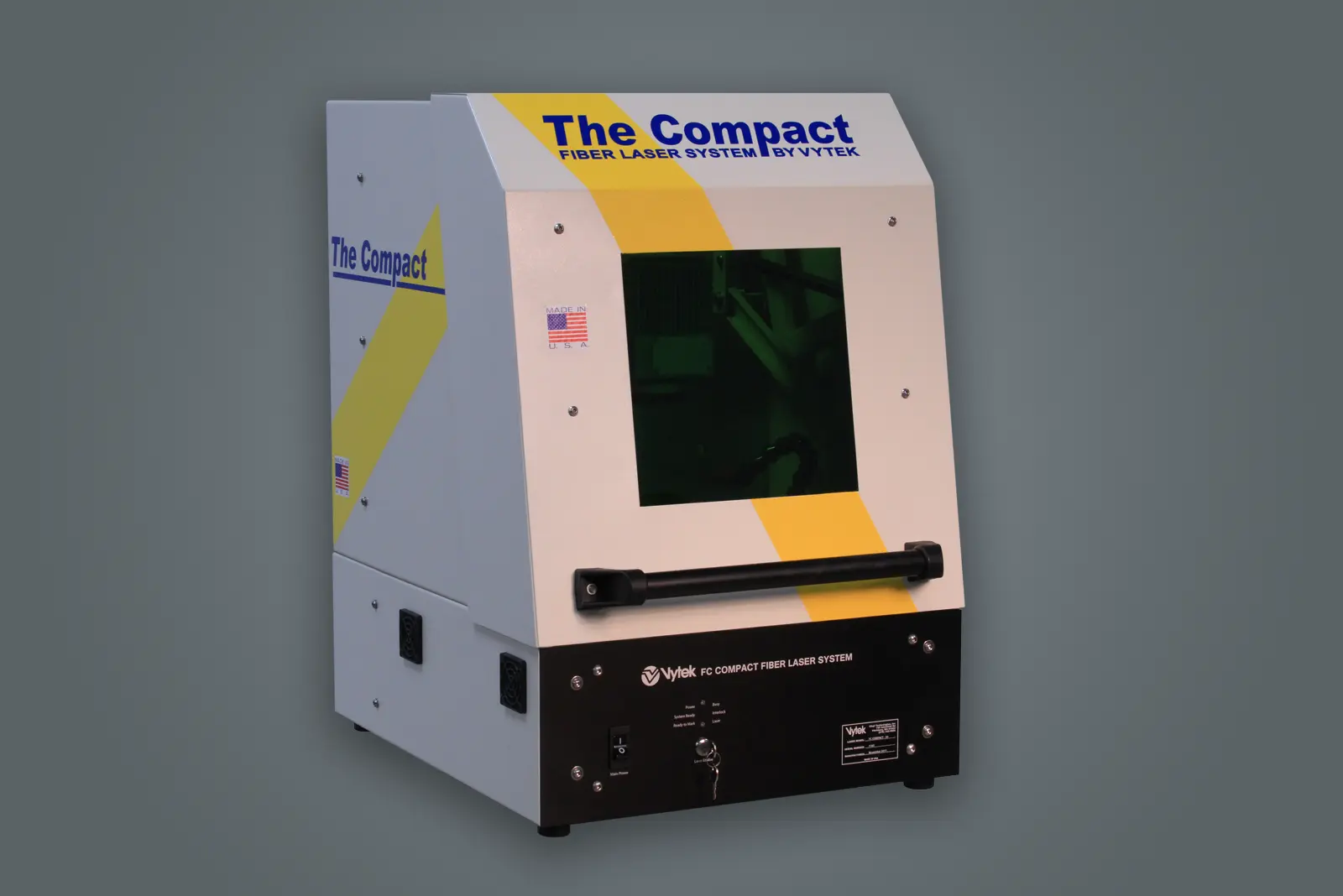

Compact is the perfect entry level system for low production requiring laser marking or engraving. The Compact is lightweight, affordable and set up is as easy as plugging the system into a 110 VAC outlet.
| Laser Type (Wavelength) |
Fiber 20, 30, or 50 Watt Pulsed Fiber (1.070nm)
Fiber Green 10 or 20 watt (532nm) |
| Electrical Requirements |
100-240 VAC 50/60Hz |
| Power Consumption w/o Laser* |
450W |
| Air Requirements |
None with standard configuration |
| Outside Dimensions mm (in) H x W x L |
812 x 558 x 660 (22″ x 26″ x 32″) |
| Max Part Size mm (in) W x L |
400 x 400 (16″ x 16″) |
| Maximum Part Height mm (in)
W/ a F-160 |
152 (6″) |
CO2CAB
The CO2Cab Cutting System Series is a fully integrated fully enclosed 10.6nm CO2 galvo system unlike any other system on the market. The CO2Cab is both a marking and cutting solution for many organic and inorganic materials.
CO2CAB 3X
The 3X is the perfect balance for large area cutting and marking. With the 3X series, extremely large field sizes and small spot sizes are achieved with Vytek’s exclusive high speed moving beam expander.

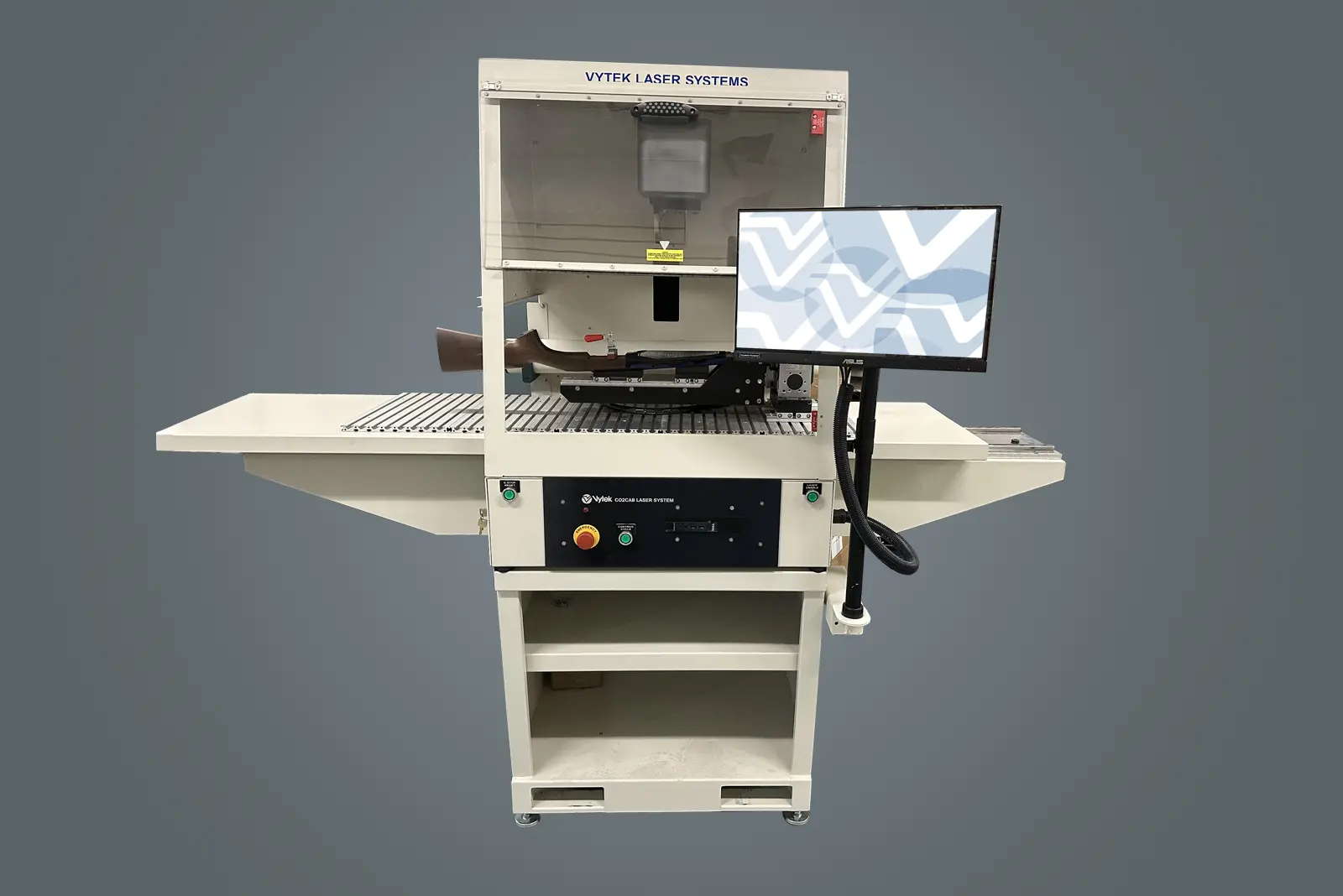

Compact XYZ

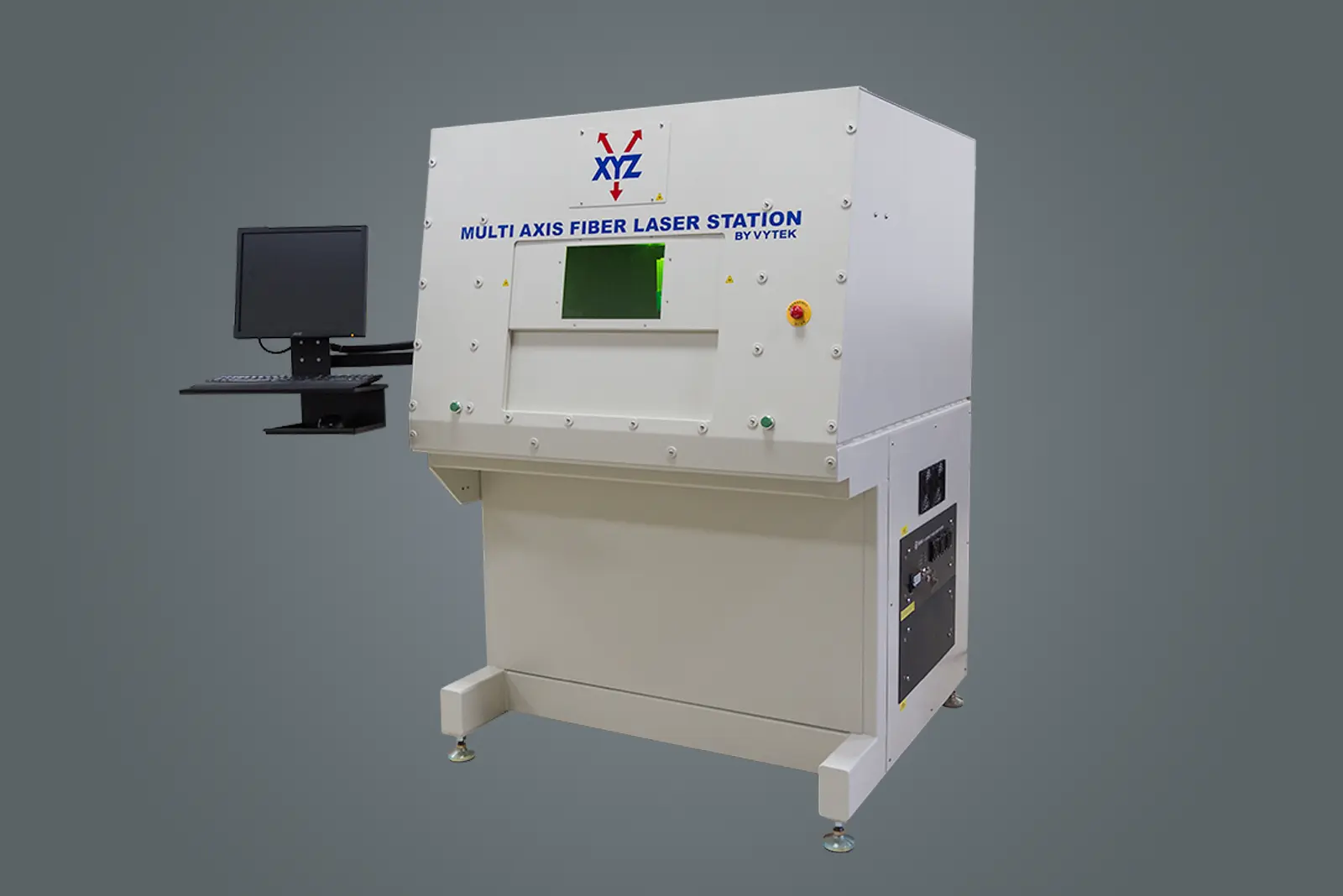

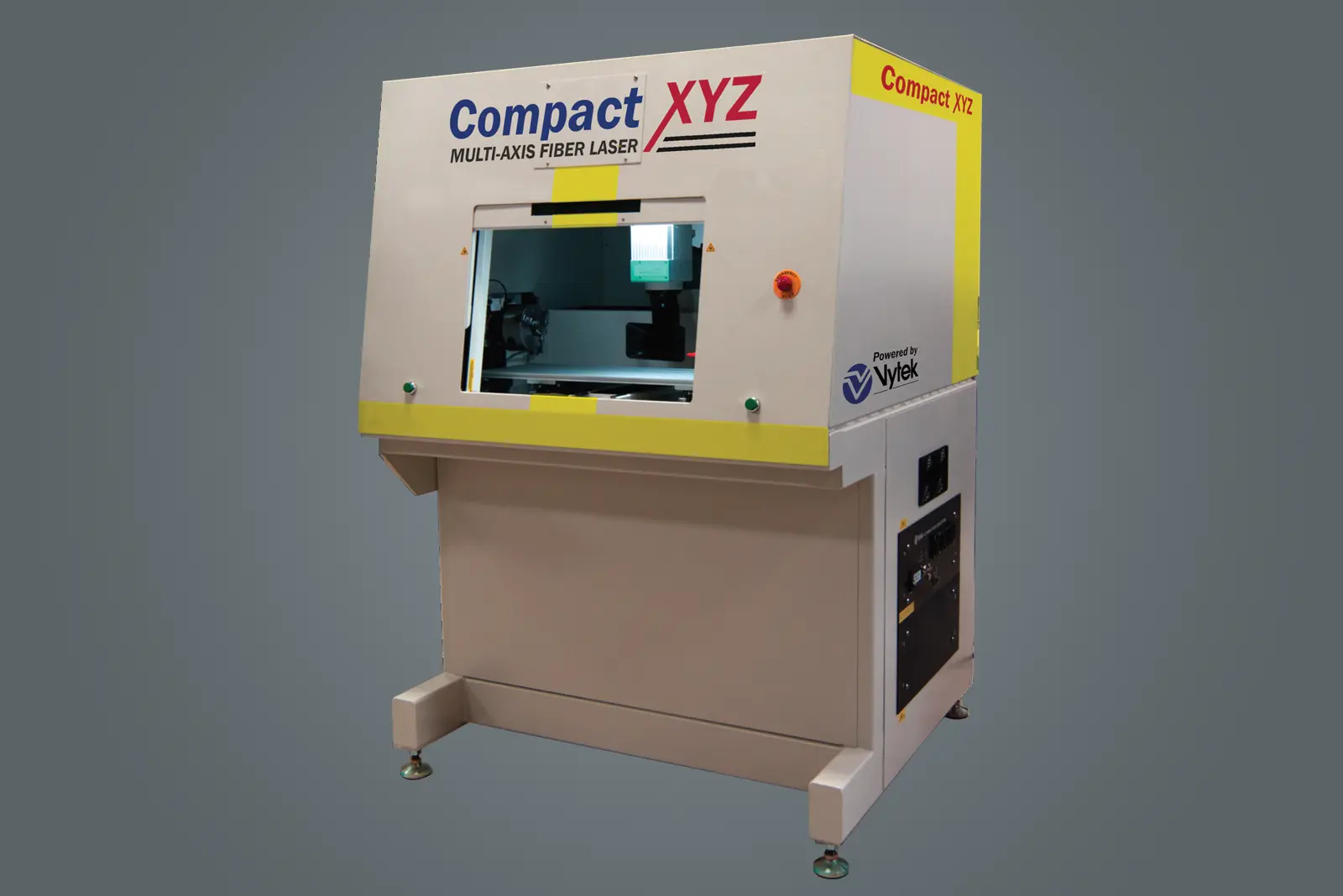

The Compact XYZ is a multi-axis fiber laser system, with 12“ in the Y-Axis, 25“ in the X-Axis and 15“ of stroke in the Z-Axis. The XYZ can also process oversized parts that require either marking (or deep engraving) over a large area or discrete marking in locations separated by a distance greater than the marking field.
| LaserType (Wavelength) |
Fiber 1500, or 3000 Watt QCW Pulsed Ytterbium based laser source (1064nm) |
| Electrical Requirements |
100-240VAC 50/60Hz |
| Power consumption w/o laser |
≤450W |
| Working Field |
12″x25″ and 15″ of Z Stroke |
| PC Connection |
Ethernet |
| Multimode Fiber Core |
50um, 100um or 200um |
| Aiming Beam |
(2) Class 2M Red Diode 635 nm |
| Cooling |
Water Cooled |
